Ariel 16: 16' x 40'
A big rectangle with wide tanning ledges at both ends.
Installed by a Latham Grand Dealer

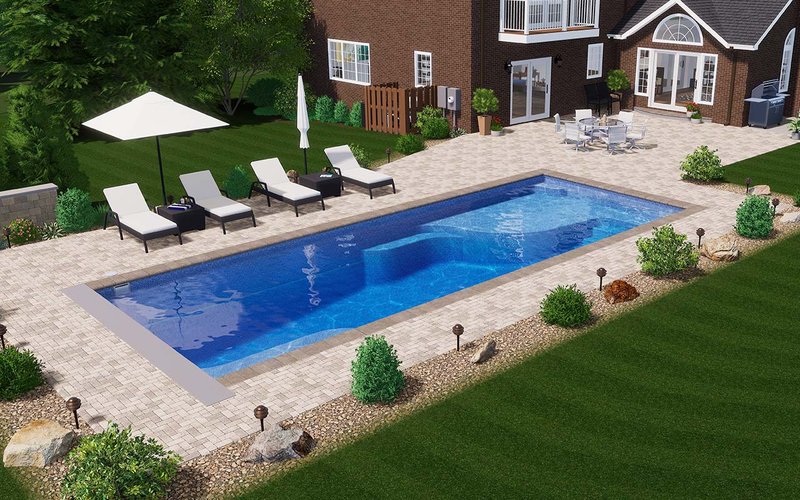

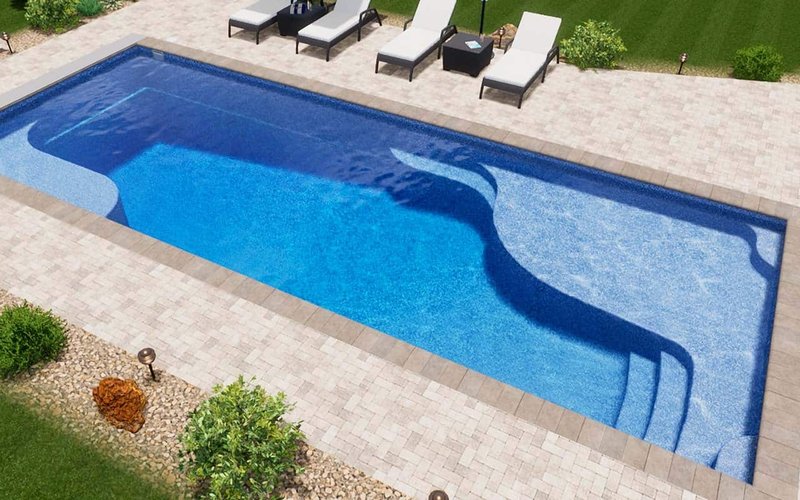

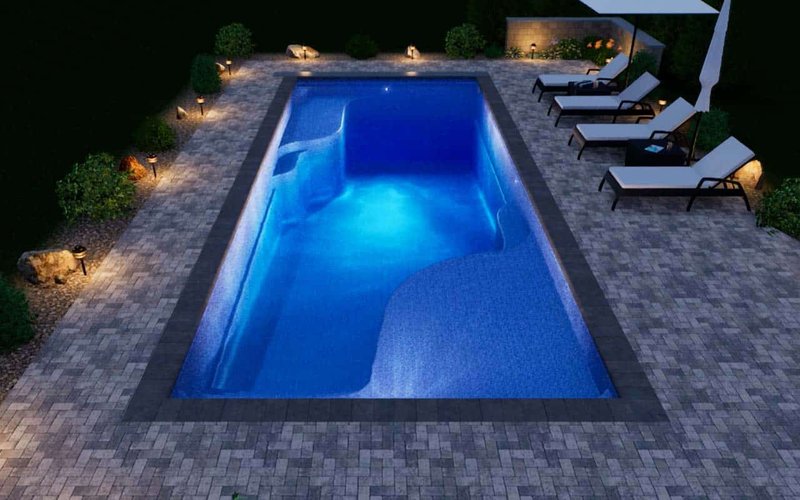

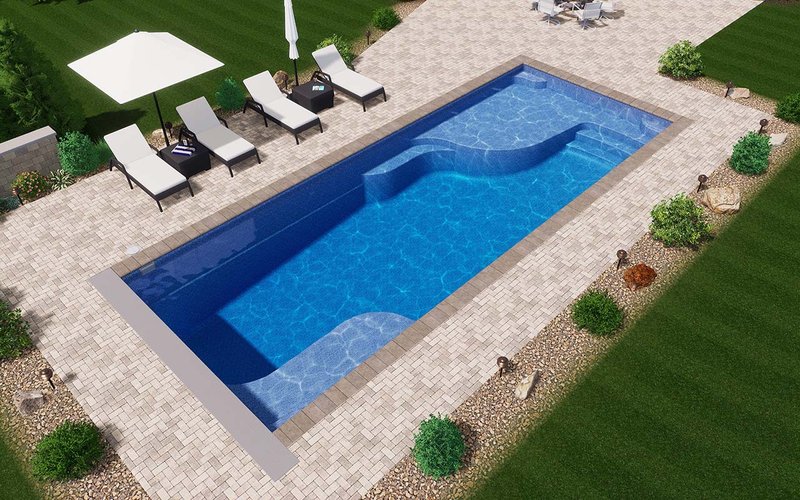

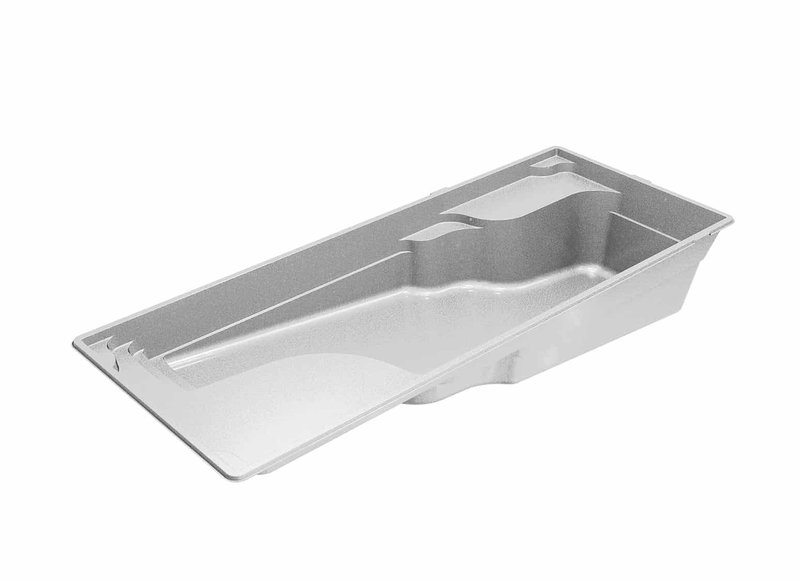

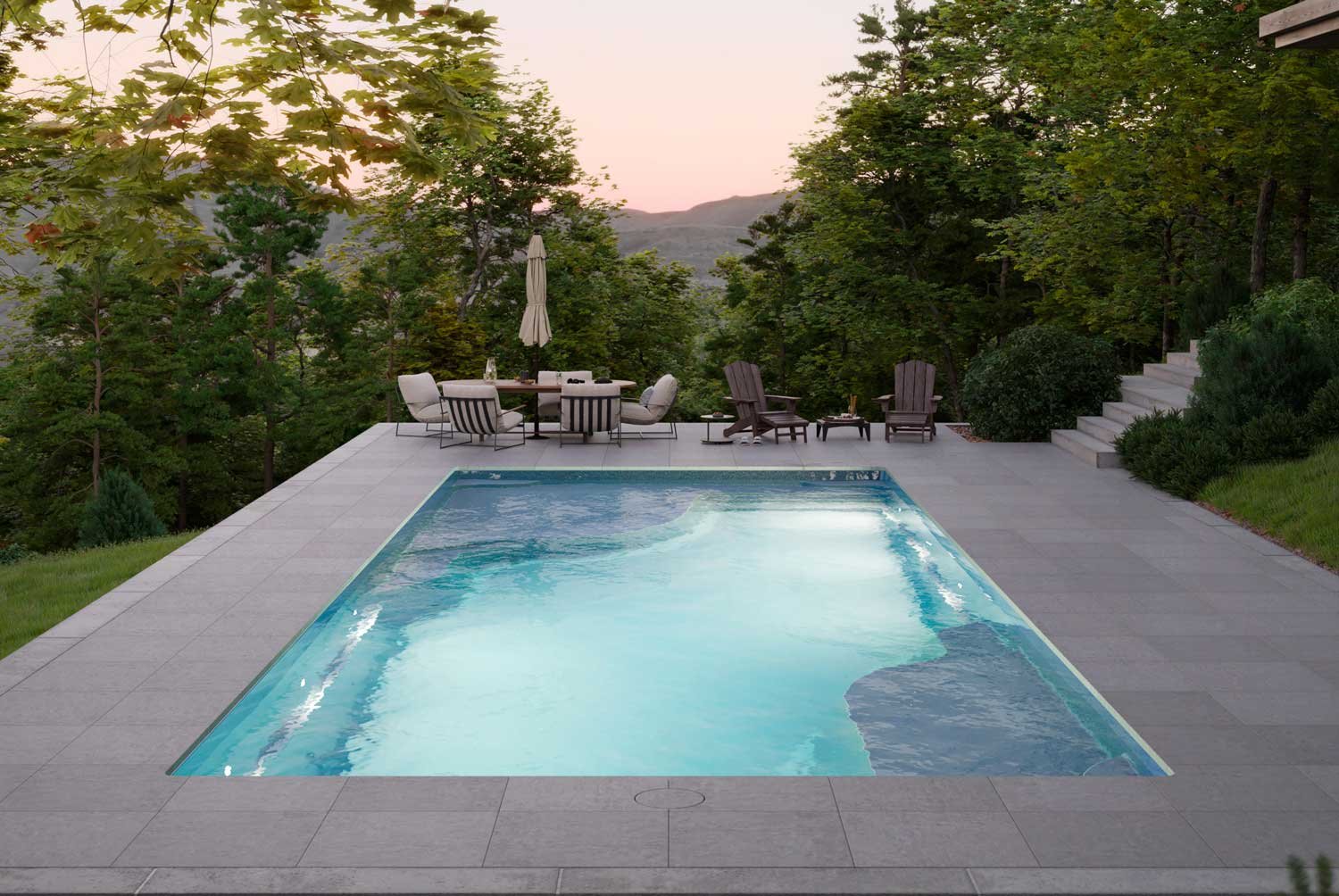

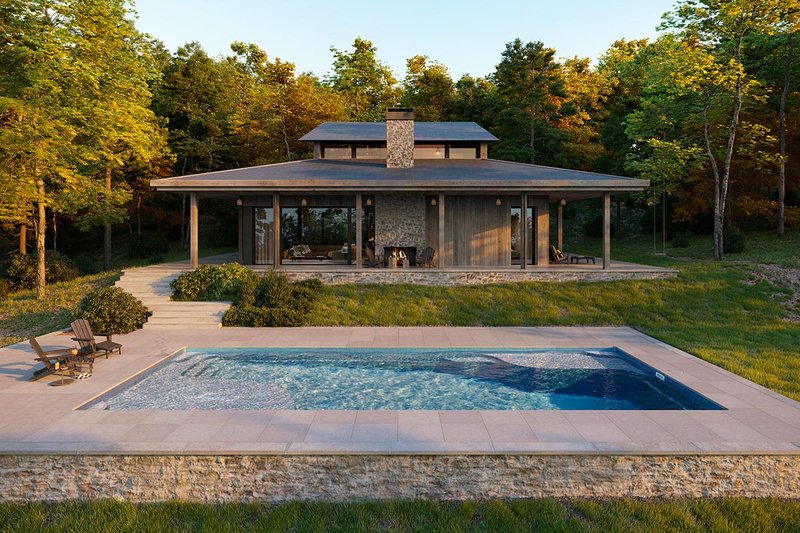

These photos and drawings are Latham’s official Ariel 16 images. It is the same shell we install. The shell is molded at Latham’s Williams, CA plant and installed by our crew to Latham’s spec — that is what keeps the limited lifetime shell warranty valid. See the Ariel 16 on lathampool.com →

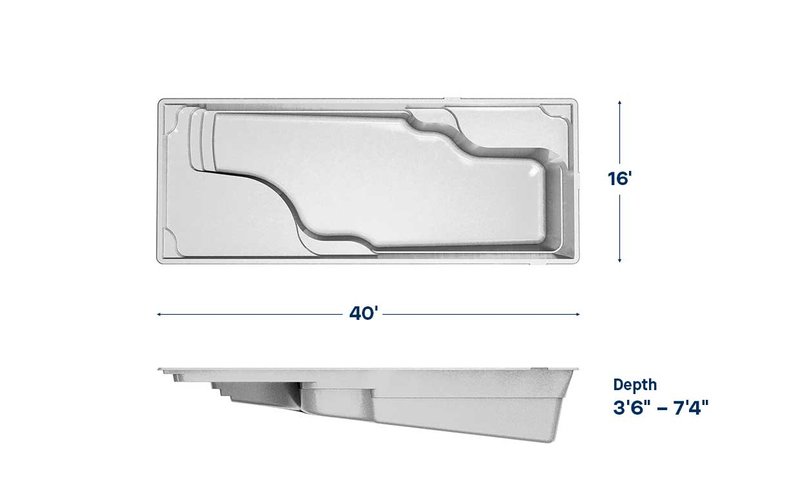

| Size | 16' x 40' |
| Depth | 3'6" – 7'4" |
| Volume | ~15,300 gallons |
| Shape | Rectangle |
| Latham series | Grand Series |
| Built-in features | Expansive tanning ledges, swim-up seating, auto-cover ready |
Turnkey installed
from $82,995
Central Valley pricing. Prices are subject to change based on distance from Hanford, CA.
Excavation, shell, equipment, plumbing, standard freight, 3' concrete decking, plans, permitting and taxes — included.
Get My Exact Price — Free Site VisitSpecs come from Latham’s official 2026 catalog. Size and volume may vary up to 3%. Screen colors are close, not exact. We bring real finish and tile samples to every design visit.
Will the Ariel 16 fit your yard?
The Ariel 16 shell measures 16' x 40' at the water’s edge. With the 3’ of concrete decking that is already in the price on every side, the finished pad is about 22' by 46' — tape that out in the yard first. A pool this size also has to clear the setbacks — the distance from property lines, the house and easements that Kings, Tulare and Fresno county cities each set for themselves. We confirm yours before the site plan (permit guide).
In the 2026 California-built lineup the Ariel 16 is one of the big models: 1 of the other 46 models are longer and 39 hold less water. A shell this long still arrives in one piece from Latham’s Williams, CA plant, and the crane pick is the part we plan hardest — street or driveway access for a large crane is the first thing we look at on the site visit.
Depth, seating and who the Ariel 16 suits
It runs from 3'6" at the entry to 7'4" at the deep end, which is as deep as any fiberglass pool we install. Adults are well over their heads there. It is still not a diving pool — no fiberglass shell is rated for a board.
Built into the Ariel 16: a tanning ledge molded into the shell — a few inches of water for loungers, toddlers and the dog, swim-up seating along the wall so adults can sit in the water and talk, and an auto-cover-ready coping line, so an automatic safety cover fits without a custom track.
Pick your Ariel 16 color & tile
Every Latham shell comes in your choice of gelcoat finish. You pick the waterline tile too. Tap a swatch to see it on the design board. We’ll include it with your quote request below. Or skip it and choose with real samples in hand at your free design visit.
Waterline tile
Optional — tap to chooseInterior finish
Optional — tap to choose
Ariel 16 · tap a finish and a tile to build your look
Colors are simulated. Real water color changes with sunlight and depth. We bring real samples to every design visit.
What every turnkey fiberglass install includes
Our “from” prices are for a fully installed swimming pool — not a bare shell in your driveway. Every turnkey Latham install includes:
- Your Latham fiberglass pool shell in the standard G2 color finish
- Skimmer, 2 return jets and dual main drains
- Sump under the pool
- Pump, filter and equipment pad
- Plumbing: suction and return lines
- Standard freight for pool shell delivery
- Excavation, debris removal, hauling and dumping
- Backfill and compaction
- 3' brushed concrete around the pool perimeter
- Pool plans and permitting
- All applicable taxes
Popular upgrades — priced up front
No mystery options list. These are the same prices that appear on our written estimates — tap any upgrade to add it to your quote request at the bottom of this page.
Nothing added yet. Tap an upgrade above and it will go with your quote request below.
Want more? Heaters, automation, decking beyond the included 3' band, and more are quoted per project — just ask.
Central Valley pricing. Prices are subject to change based on distance from Hanford, CA. “From” prices are full installed prices for a standard site in our Hanford-area service zone. Delivery outside the standard freight zone, tight access, tough soil and options are quoted per project. You always get a final written number before you sign anything. Prices shown are current 2026 factory pricing and can be updated. The price on a model’s page is the number your written estimate opens with.
Ariel 16 vs. the models next to it
The Ariel 16 is a one-of-a-kind shape in the lineup. The two rectangle models closest to it in price:
| Model | Size | Depth | Volume | Installed |
|---|---|---|---|---|
| Ariel 16 | 16' x 40' | 3'6" – 7'4" | 15,300 gal | from $82,995 |
| Corinthian 16 | 15'10" x 40' | 3'6" – 7' | 15,400 gal | from $83,995 |
| Corinthian 16 BME | 15'10" x 40' | 3'6" – 7' | 15,400 gal | from $84,995 |
Stepping up to the Corinthian 16 adds 100 gallons for $1,000 more. All three are turnkey installed prices — nothing hidden behind a quote.
Owning an Ariel 16 in the Central Valley
A Central Valley summer — weeks over 100°F — pulls something like a quarter inch of water off an uncovered pool every day. On the Ariel 16’s roughly 640 square feet of water surface that is on the order of 100 gallons a day in July — the single best argument for an automatic cover on this model (the shell is already cut for one). A cover also holds heat overnight, which matters more on a 15,300-gallon pool than the brochure suggests.
Volume drives running cost. At 15,300 gallons the Ariel 16 needs more chemistry than a mid-size pool, which our weekly service plans price in, and the first fill takes about 28 hours from a garden hose at 500–600 gallons an hour — we start it the day the shell is set and plumbed. Our own Hanford crew handles the install, the permit and, if you want it, the weekly service afterward.
Ariel 16 questions
How much does the Ariel 16 cost installed in Hanford?
The Ariel 16 starts at $82,995 turnkey: excavation, the shell, equipment, plumbing, standard freight, 3’ of concrete decking, plans, permitting and taxes. Central Valley pricing. Prices are subject to change based on distance from Hanford, CA. California law caps the down payment at the lesser of 10% or $1,000, and we bill only for work that is done.
How big is the Ariel 16, and how much yard does it need?
The shell is 16' x 40' with about 15,300 gallons of water. With the included 3’ deck the footprint is roughly 22' by 46', plus whatever setback your city or county requires from property lines and the house. We confirm the setback and draw the site plan before anything is signed.
How deep is the Ariel 16?
The Ariel 16 runs from 3'6" in the shallow end to 7'4" at the deep end. Like every fiberglass pool it is not rated for a diving board.
Does the Ariel 16 have a tanning ledge?
Yes. The tanning ledge is part of the Ariel 16 shell itself, not an add-on. A separate spa shell can be built alongside and is quoted as its own line.
How long does it take to fill the Ariel 16?
About 28 hours for 15,300 gallons from a standard garden hose. We start the fill the day the shell is set and plumbed; most projects go from dig to swim-ready in 2–4 weeks once the permit is in hand.
Backed by Latham. Installed by a Grand Dealer.
Neighborhood Pool Service is a Latham Grand Dealer — the top tier of Latham’s dealer network. Your Ariel 16 ships from Latham’s factory. Our licensed local crew installs it to Latham’s specs (CSLB #1139527, verify). And Latham backs the shell with its limited lifetime structural warranty.
California protects pool buyers — and we follow the law to the letter
Under California law (Business & Professions Code §7159), a licensed contractor may collect a down payment of no more than $1,000 or 10% of the contract price, whichever is less. So no matter the size of your project, we will never ask for more than $1,000 down. And we only bill for work after it is done. If any pool company asks you for a 20–50% deposit up front, that is a red flag. It’s also illegal.
Get your exact Ariel 16 price
You already know the starting price — it’s printed above. Tell us where the pool is going. We’ll come out, walk the yard, and put a real number in writing. It’s free, and usually done within a couple of days. And if you go ahead, California law caps your down payment at the lesser of 10% or $1,000.
