Milan 10.20: 10' x 20'
The compact plunge line — real swimming in the space of a patio.
Installed by a Latham Grand Dealer

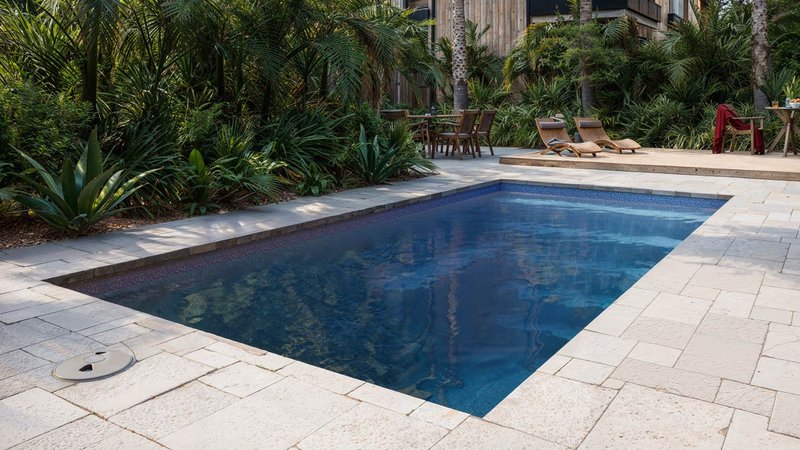

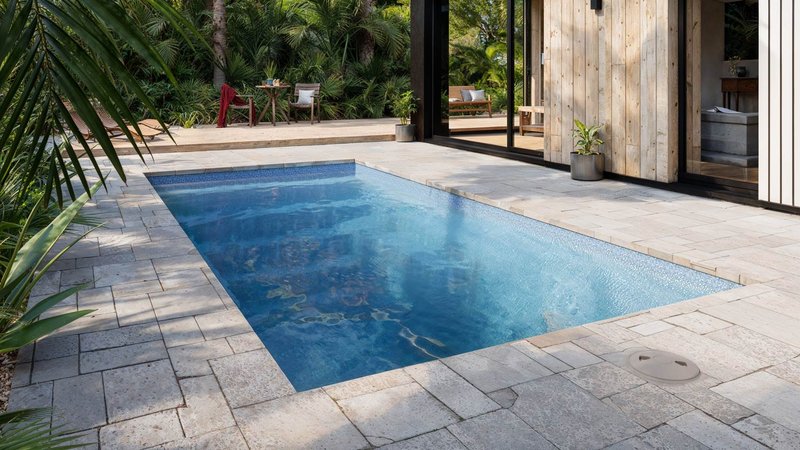

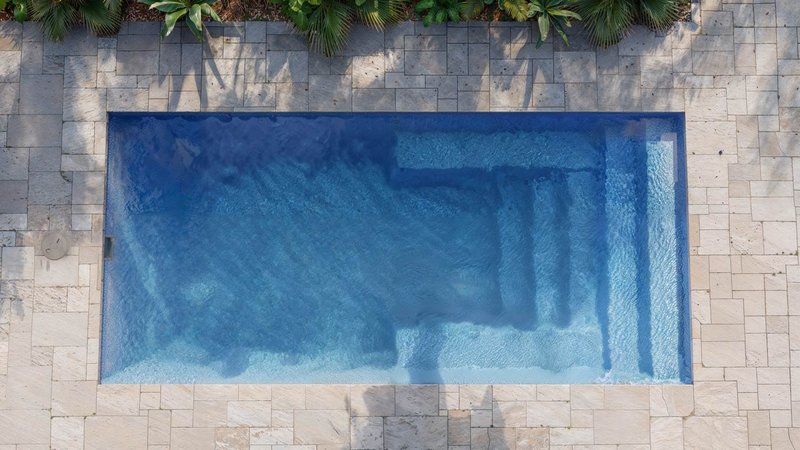

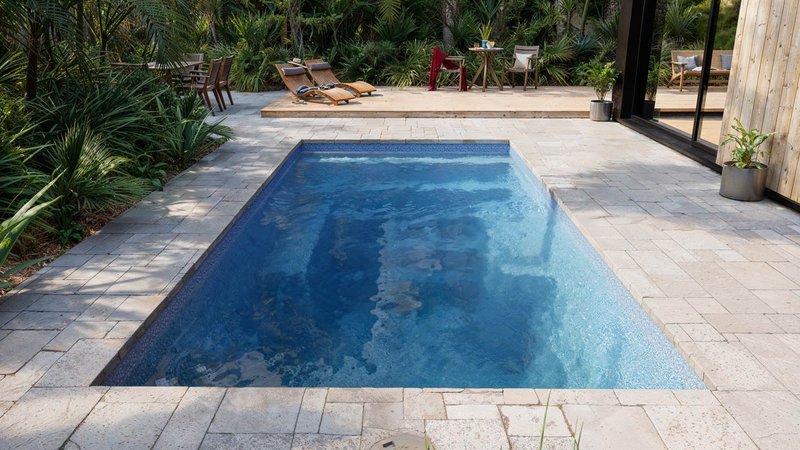

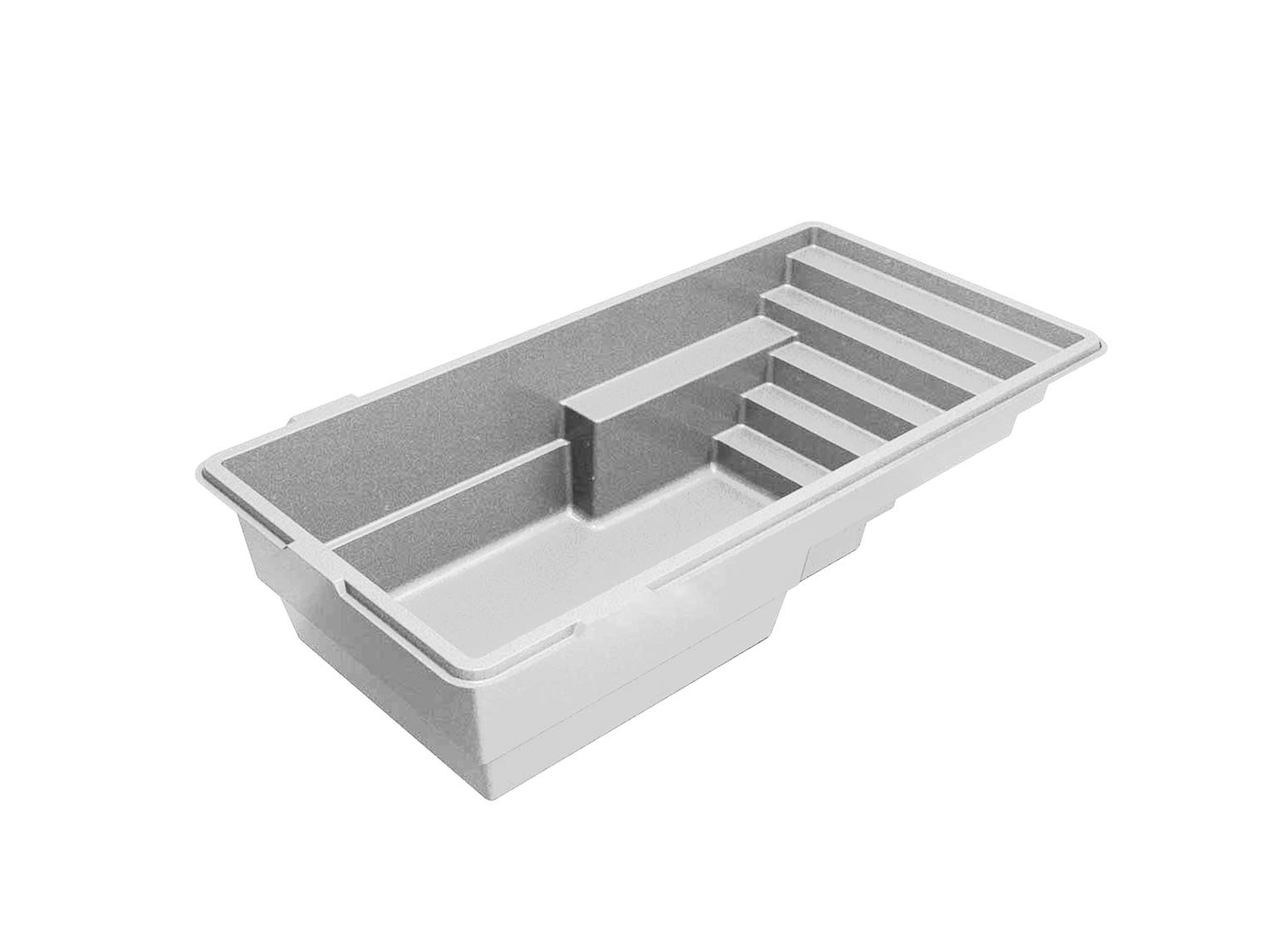

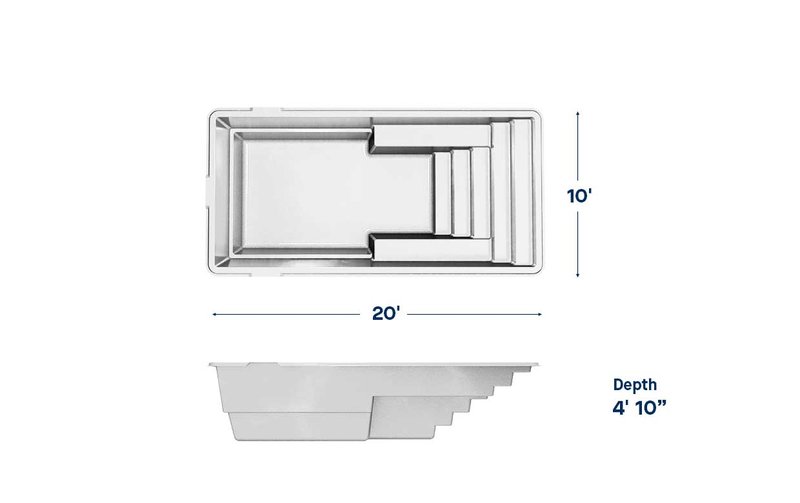

These photos and drawings are Latham’s official Milan 10.20 images. It is the same shell we install. The shell is molded at Latham’s Williams, CA plant and installed by our crew to Latham’s spec — that is what keeps the limited lifetime shell warranty valid. See the Milan 10.20 on lathampool.com →
| Size | 10' x 20' |
| Depth | 4'10" max |
| Volume | ~3,900 gallons |
| Shape | Rectangle plunge |
| Latham series | Select Series |
| Built-in features | Wading area, swim-up seating, auto-cover ready |
Turnkey installed
from $49,995
Central Valley pricing. Prices are subject to change based on distance from Hanford, CA.
Excavation, shell, equipment, plumbing, standard freight, 3' concrete decking, plans, permitting and taxes — included.
Get My Exact Price — Free Site VisitSpecs come from Latham’s official 2026 catalog. Size and volume may vary up to 3%. Screen colors are close, not exact. We bring real finish and tile samples to every design visit.
Will the Milan 10.20 fit your yard?
The Milan 10.20 shell measures 10' x 20' at the water’s edge. With the 3’ of concrete decking that is already in the price on every side, the finished pad is about 16' by 26' — tape that out in the yard first. Setbacks are extra: your city or county fixes how far the water must sit from property lines and the house, and on a compact lot that rule usually decides where the pool goes. We look it up before drawing the site plan (how permits work here).
In the 2026 California-built lineup the Milan 10.20 is one of the compact models: 43 of the other 46 models are longer and 3 hold less water. It ships as one molded piece from Latham’s Williams, CA plant and a crane lowers it into the hole, so a narrow side yard is not the problem people expect — the crane reaches over the fence.
Depth, seating and who the Milan 10.20 suits
The floor is flat at 4'10" from end to end. Every swimmer stands everywhere, laps are the same depth the whole way, water aerobics work in any spot, and an automatic cover glides over a rectangle with no deep-end surprises.
Built into the Milan 10.20: swim-up seating along the wall so adults can sit in the water and talk, a wading area where the smallest swimmers can stand, and an auto-cover-ready coping line, so an automatic safety cover fits without a custom track.
Pick your Milan 10.20 color & tile
Every Latham shell comes in your choice of gelcoat finish. You pick the waterline tile too. Tap a swatch to see it on the design board. We’ll include it with your quote request below. Or skip it and choose with real samples in hand at your free design visit.
Waterline tile
Optional — tap to chooseInterior finish
Optional — tap to choose
Milan 10.20 · tap a finish and a tile to build your look
Colors are simulated. Real water color changes with sunlight and depth. We bring real samples to every design visit.
What every turnkey fiberglass install includes
Our “from” prices are for a fully installed swimming pool — not a bare shell in your driveway. Every turnkey Latham install includes:
- Your Latham fiberglass pool shell in the standard G2 color finish
- Skimmer, 2 return jets and dual main drains
- Sump under the pool
- Pump, filter and equipment pad
- Plumbing: suction and return lines
- Standard freight for pool shell delivery
- Excavation, debris removal, hauling and dumping
- Backfill and compaction
- 3' brushed concrete around the pool perimeter
- Pool plans and permitting
- All applicable taxes
Popular upgrades — priced up front
No mystery options list. These are the same prices that appear on our written estimates — tap any upgrade to add it to your quote request at the bottom of this page.
Nothing added yet. Tap an upgrade above and it will go with your quote request below.
Want more? Heaters, automation, decking beyond the included 3' band, and more are quoted per project — just ask.
Central Valley pricing. Prices are subject to change based on distance from Hanford, CA. “From” prices are full installed prices for a standard site in our Hanford-area service zone. Delivery outside the standard freight zone, tight access, tough soil and options are quoted per project. You always get a final written number before you sign anything. Prices shown are current 2026 factory pricing and can be updated. The price on a model’s page is the number your written estimate opens with.
Milan 10.20 vs. the models next to it
The Milan 10.20 is one of 2 Milan models built in California this year. Same shape language, different size and price:
| Model | Size | Depth | Volume | Installed |
|---|---|---|---|---|
| Milan 10.16 | 10' x 16' | 4' uniform | 2,450 gal | from $44,995 |
| Milan 10.20 | 10' x 20' | 4'10" max | 3,900 gal | from $49,995 |
Against the Milan 10.16, the Milan 10.20 carries 1,450 more gallons for $5,000 more. Same turnkey basis on every line, so the numbers compare straight across.
Owning a Milan 10.20 in the Central Valley
Hanford runs past 100°F for weeks every summer, and an uncovered pool can lose around a quarter inch of water a day to evaporation. On the Milan 10.20’s roughly 200 square feet of water surface that is on the order of 30 gallons a day in July — the single best argument for an automatic cover on this model (the shell is already cut for one). A cover also holds heat overnight, which matters more on a 3,900-gallon pool than the brochure suggests.
Volume drives running cost. At 3,900 gallons the Milan 10.20 needs a fraction of the chemicals a 15,000-gallon pool does, and the first fill takes about 7 hours from a garden hose at 500–600 gallons an hour — we start it the day the shell is set and plumbed. Our own Hanford crew handles the install, the permit and, if you want it, the weekly service afterward.
Milan 10.20 questions
How much does the Milan 10.20 cost installed in Hanford?
The Milan 10.20 starts at $49,995 turnkey: excavation, the shell, equipment, plumbing, standard freight, 3’ of concrete decking, plans, permitting and taxes. Central Valley pricing. Prices are subject to change based on distance from Hanford, CA. California law caps the down payment at the lesser of 10% or $1,000, and we bill only for work that is done.
How big is the Milan 10.20, and how much yard does it need?
The shell is 10' x 20' with about 3,900 gallons of water. With the included 3’ deck the footprint is roughly 16' by 26', plus whatever setback your city or county requires from property lines and the house. We confirm the setback and draw the site plan before anything is signed.
How deep is the Milan 10.20?
The Milan 10.20 has a flat 4'10" floor from end to end.
Can I add a tanning ledge or spa to the Milan 10.20?
Yes. Neither is molded into this shell, so we build a standalone fiberglass ledge or spa alongside the pool and show it as its own line on the estimate. The upgrade list on this page has the starting prices.
How long does it take to fill the Milan 10.20?
About 7 hours for 3,900 gallons from a standard garden hose. We start the fill the day the shell is set and plumbed; most projects go from dig to swim-ready in 2–4 weeks once the permit is in hand.
Backed by Latham. Installed by a Grand Dealer.
Neighborhood Pool Service is a Latham Grand Dealer — the top tier of Latham’s dealer network. Your Milan 10.20 ships from Latham’s factory. Our licensed local crew installs it to Latham’s specs (CSLB #1139527, verify). And Latham backs the shell with its limited lifetime structural warranty.
California protects pool buyers — and we follow the law to the letter
Under California law (Business & Professions Code §7159), a licensed contractor may collect a down payment of no more than $1,000 or 10% of the contract price, whichever is less. So no matter the size of your project, we will never ask for more than $1,000 down. And we only bill for work after it is done. If any pool company asks you for a 20–50% deposit up front, that is a red flag. It’s also illegal.
Get your exact Milan 10.20 price
You already know the starting price — it’s printed above. Tell us where the pool is going. We’ll come out, walk the yard, and put a real number in writing. It’s free, and usually done within a couple of days. And if you go ahead, California law caps your down payment at the lesser of 10% or $1,000.
